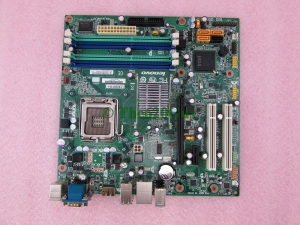

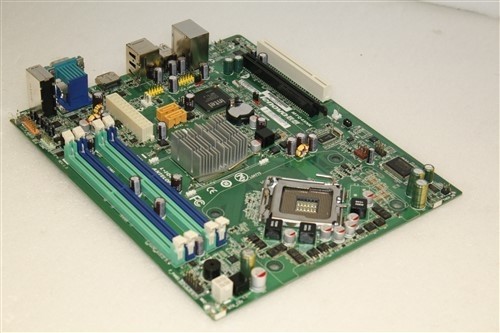

Lenovo ThinkCentre M58 Motherboard
Just to remind you, Lenovo has a long history of producing business PC and Lenovo ThinkCentre M58 motherboard is one from them. The roots of the Lenovo business lie in popular technology firm known as IBM. Also, from the past few years, we have seen the products of Lenovo continue in a similar vein.
M58 motherboard includes Intel Core Quad Q8200 processor which runs at 2.33GHz of speed. Also, you can get 2GB of DDR3 RAM which can be upgraded up to 4GB. Moreover, for multitasking, the motherboard has integrated Intel’s GMA 4500 graphics which is a good option for most of the business peoples.
However, the graphics available on the M58 motherboard is more than enough for most office applications along with more demanding tasks such as video editing or software development.
Specs of Lenovo ThinkCentre M58 Motherboard:
| Processor / Chipset | |
| CPU | Intel Pentium E5200 / 2.5 GHz |
| Number of Cores | Dual-Core |
| 64-bit Computing | Yes |
| CPU Qty | 1 |
| Processor Main Features | Intel Extended Memory 64 Technology, Intel Execute Disable Bit, Enhanced Intel SpeedStep Technology |
| CPU Socket | LGA775 Socket |
| Chipset Type | Intel Q45 Express |
| Front Side Bus | 800 MHz |
| Cache Memory | |
| Installed Size | L2 Cache – 2 MB |
| Cache Per Processor | 2 MB |
| RAM | |
| Installed Size | 2 GB / 8 GB (max) |
| Technology | DDR3 SDRAM – non-ECC |
| Effective Memory Speed | 1066 MHz |
| Memory Specification Compliance | PC3-8500 |
| Form Factor | DIMM 240-pin |
| Slots | 4 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Configuration Features | 2 x 1 GB |
| Hard Drive | |
| Type | HDD |
| Capacity | 1 x 250 GB |
| Interface Type | SATA 3Gb/s |
| Spindle Speed | 7200 rpm |
| Storage Controller | |
| Type | 1 x SATA – integrated |
| Channel Qty | 3 |
| RAID Level | RAID 0, RAID 1 |
| Optical Storage | |
| Type | DVD-Writer – SATA |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | Intel GMA 4500 Dynamic Video Memory Technology 5.0 |
| Video Interfaces | VGA, DVI, DisplayPort |
The main advantage of M58 is its energy efficiency which consumed a 19W when it is in an idle condition and just one watt more when running as per our demand. So ThinkCentre M58 is the best option if you want to save money along with an energy efficient model for your office work.
Talking about its port, it has a total of eight USB sockets which consist of six USB slot on the rear while two on the front side of the motherboard. It also includes one eSata port, Gigabit Ethernet, a nine-pin serial port and one D-SUB which is required for most of the business peoples. In addition, you get four DIMM slots and two half-height PCI slots which remain absolutely free.
Moreover, at Laptech we deal with many more such kind of products which includes server, motherboards and etc. To know full detail about such products, do visit our website where you can get the best quality of products at an affordable price range. Do share your thoughts with us.
